Conductive Belt For Drying& Bonding of Nonwoven Cloth

Description

Under certain conditions of temperature and humidity, the equipment using a polyester mesh belt will produce high friction electrostatic when it runs at a high speed.

Although the static current is usually of low intensity, it can be the cause of problems like when light pieces of product stay adhered to the surface of the belt which reduces the efficiency and product quality, or combustion risk in environments sensitive to deflagration.

The accumulation of electrostatic charges can be dangerous for different reasons:

● There is a risk of fire and explosion in an environment with a large number of combustible materials.

● Produce radio interference, which may cause damage to electrical equipment.

● Workers are at risk of electrical injury when they touch the conveyor belt or something being conveyed.

In order to solve these potential hazards, KEYLIFE offers antistatic conductive belts to drive and dissipate surface static electricity accumulate during operation.

There is a conductive fiber through the polyester anti-static fabrics which can release the friction electrostatic, thus play a role in anti-static.

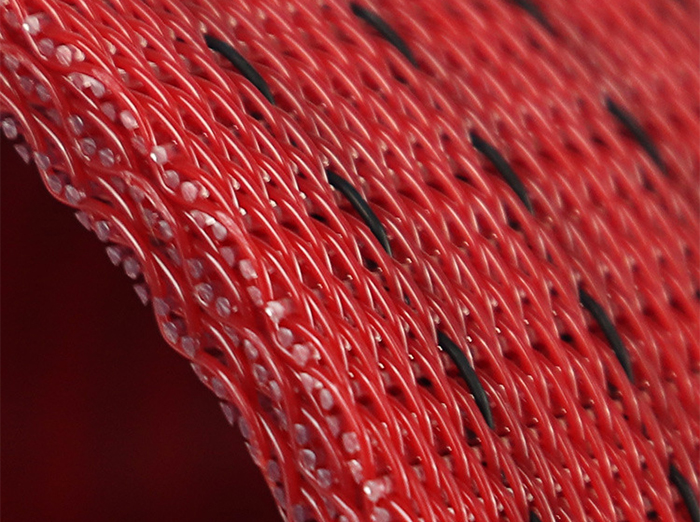

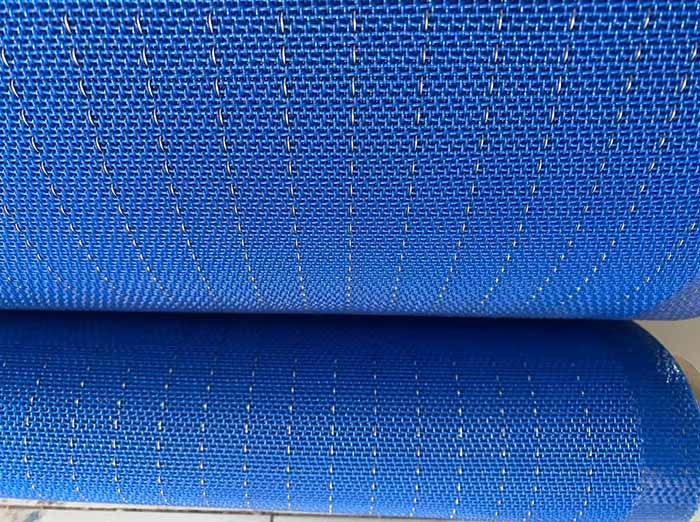

The antistatic conductive belts are woven from polyester monofilament and carbon or copper wire with good conductivity.

Feature

● Excellent conductive threads ensure safe static discharge performance, prevent static accumulating.

● The air permeability adjustable to fulfill the various requirements of different uses.

● Uniform air permeability can achieve an excellent ventilation effect and eliminate the possibility of clogging.

● Tight warp and weft connection makes this fabric not easy to deform.

● Good heat setting post-treatment offers stable structure, low thermal shrinkage, low thermal elongation, excellent running performance, which could ensure straight run in minimum off-tracking, also stable in dimension.

● Excellent anti-wear strength and moisture resistance.

● Low thermal shrinking and less elongation at heat.

● The even and smooth surface is easy to clean.

● Good chemical resistance.

● These antistatic process belts fulfill the ATEX requirements for use in equipment group II, categories 3G and 3D.

Application

● Antistatic mesh belt is widely used in airlaid, spunlaid, wetlaid & drylaid nonwoven forming, wood fiberboard, dust-free paper, chemical fiber, and other industries.

● Used as continuous pre-pressing mesh belt in chemical fiber, pulp dry papermaking, fiberboard, and other industries.

● In applications of spunbond, meltblown, card and wetlaid nonwovens, the conductive fiber ensures reliable electrostatic discharge.

● Antistatic mesh belt can also be used in environmental protection, rubber, chemical industry and other anti-static industries.

Specification

KEYLIFE Conductive Belt For Drying& Bonding of Nonwoven Cloth Processes

KEYLIFE supplies temperature-resistant filter belts for thermobonding processes in the nonwoven industry in different materials: Stainless steel, PPS or PEEK meshes depending on the application.

KEYLIFE uses an easily closable loop pin seam for this purpose. The belt edge is welded smoothly to ensures the production speeds are achieved safely and reliably.

Technical superiority:

• Exact tracking due to high dimensional and form stability;
• Pin seam – closable on site by the customer;
• Stable edge welding on metal belts
