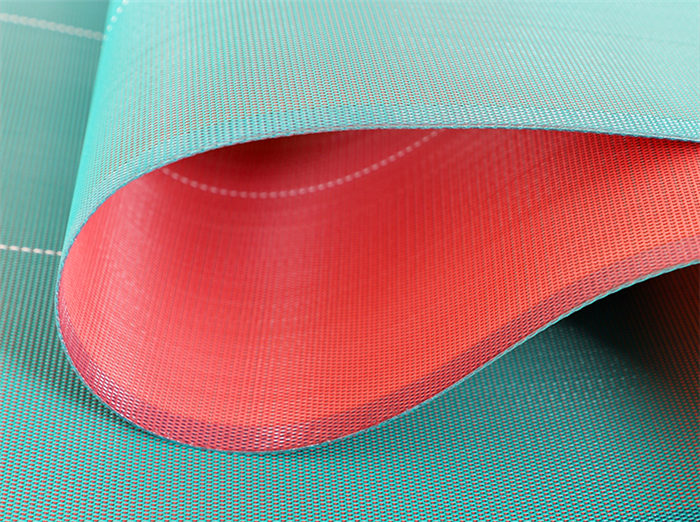

Woven Dryer Fabric For Clean Running

Description

Woven polyester dryer fabric can be fabricated in single, double or two and a half layers to achieve different air permeability. It is also available in three-shed, four-shed or other various woven patterns based upon request.

Woven dryer fabric influences the drying process by openness and contact area with the paper sheet. Different yarn structures and shapes are used to control air permeability (CFM) and influence properties such as contact area, wear resistance, stability and cleanliness.

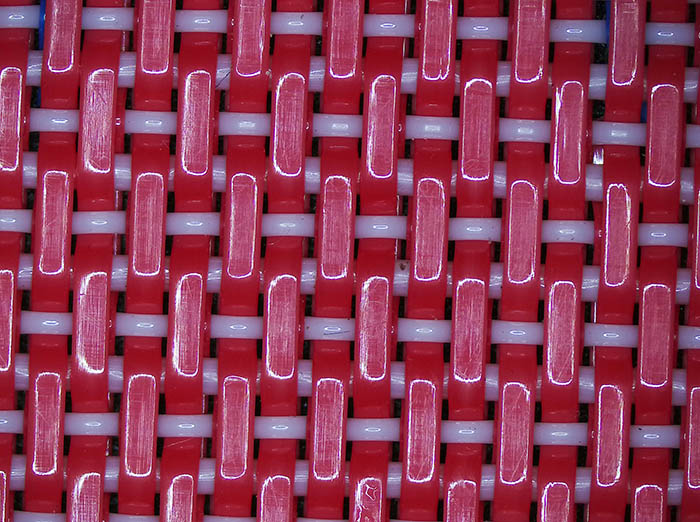

Dryer fabrics are woven with round or flat monofilaments for drying requirements of different paper grades, and different machine speeds. Flat wire dryer fabric is mainly used in the fore heating box of the drying zone, and also can be used for all paper grades.

Normally, the three-shed fabric is perfect for drying papers less than 70g and a four-shed one is ideal for those papers of weight larger than 70g. In addition, woven polyester dryer fabric can be made to custom orders.

Feature

● PPS (Phenylene sulfide) materials are available as a choice to reinforce the edge to operate in severe conditions.

● We use different yarn structures and shapes to control air permeability and other properties such as contact area, wear resistance, stability and cleanliness.

● Rectangular or flat monofilament yarns are used as machine yarns and cross-directional yarns to improve runnability, sheet handling and wear potential on high-speed machines.

● We offer special materials for our dryer fabrics to have  the characteristics of high-temperature resistance, abrasion resistance and aging resistance, etc.

Application

The fabric is widely used in papermaking, mining, food, pharmaceutical, printing and dying, and rubber industry. It can be also used as a conveyor belt and the laminating machine belt.

For paper machines, the woven dryer fabrics are suitable for drying packing paper, cultural paper, board paper and pulp board.

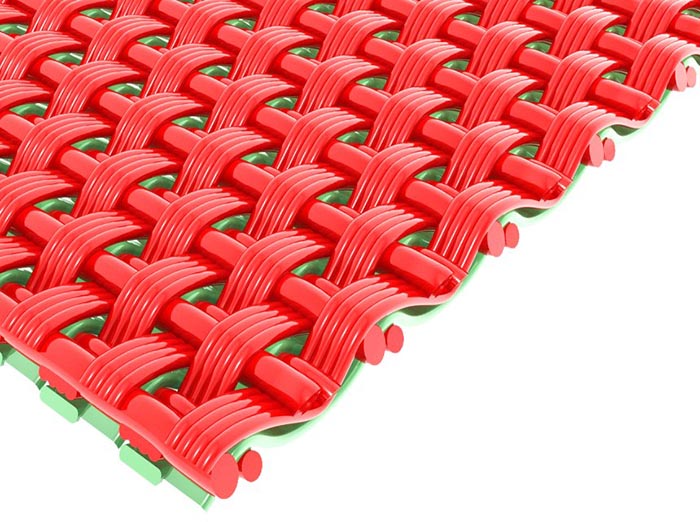

KEYLIFE Dryer Fabric- Style DRY CLEAN

The DRY CLEAN dryer fabric is designed to reduce the negative impacts of contamination on fabric performance. The high number of small contact points combined with the micro structured sheet side MD yarns help prevent the formation of large contaminant particles and make shower easier to remove any build-up that occurs, thus the fabric can maintain its permeability longer and provide consistent sheet handling for longer useful life on Uno Run positions and improved drying in conventional sections.

Technical superiority:

• Increase life at optimum performance level;
• Reduced cleaning requirements;
• Improved drying by maintaining permeability.
