Paper machine fabrics are an indispensable key component in the papermaking process, which directly affects the quality of paper, production efficiency and stability of equipment operation.
This article will explore in depth the types, functions and effects of paper machine fabrics on the papermaking process, and analyze how to choose suitable fabrics to meet the production needs of different paper grades. In addition, it will also focus on the latest technological advances and market trends in the industry to help papermaking companies optimize production processes and improve product competitiveness.
Classification of Paper Machine Clothing
Paper machine fabrics play a vital role in the papermaking process and are mainly used for dehydration, transportation and drying of pulp. According to different papermaking links, paper machine fabrics are mainly divided into the following categories:

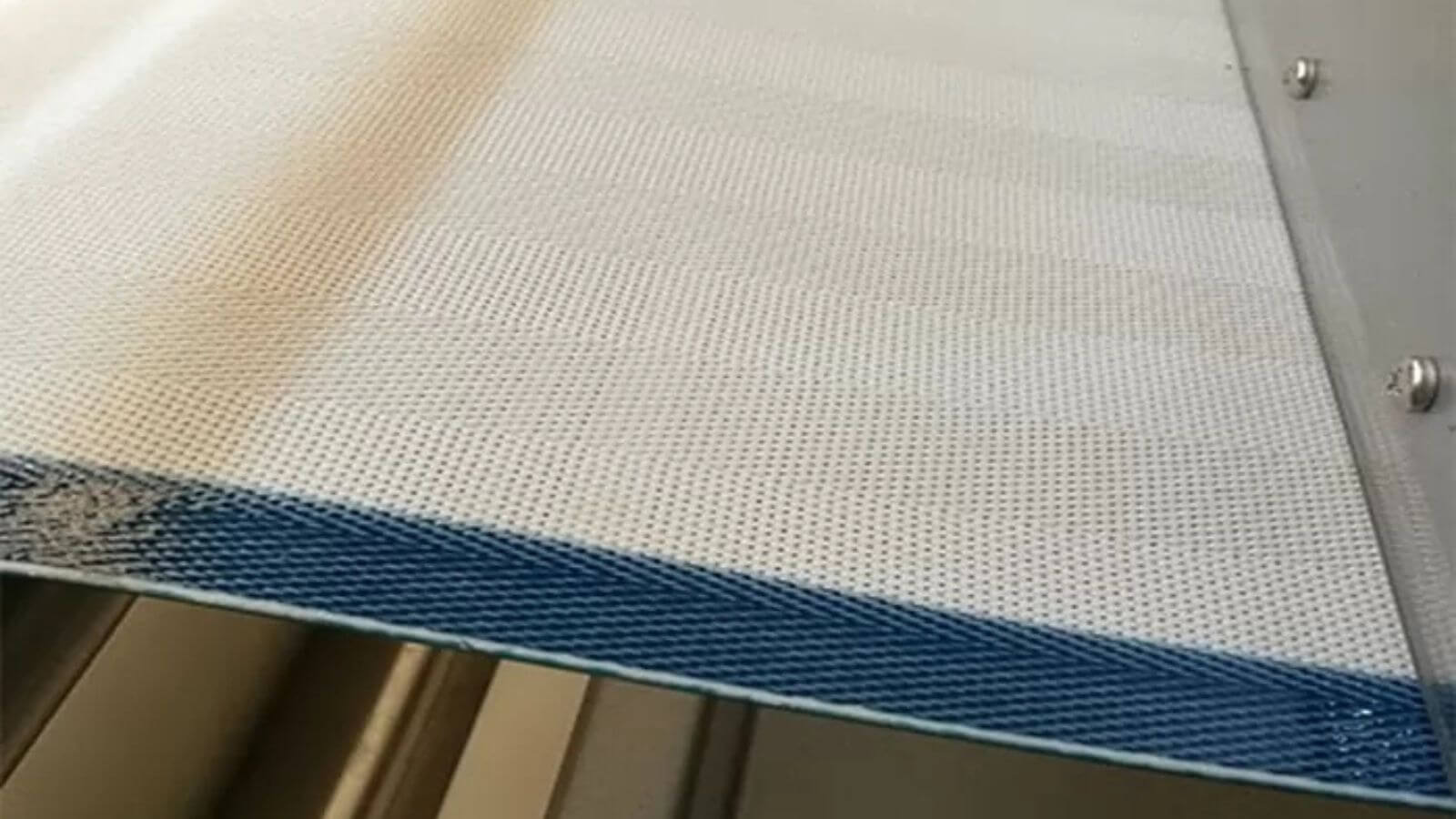

1. Forming Fabrics
Forming fabrics are used in the wet forming stage of the papermaking machine, responsible for supporting the pulp and helping to remove moisture so that the fibers can form preliminary paper sheets. Common types of forming fabrics include:
-
Single-layer forming fabrics: simple structure, good water permeability, suitable for low-speed papermaking machines.
-
Double-layer forming fabrics: made of two layers of mesh wires, which can provide better paper quality and durability.
-
Three-layer forming fabrics: mostly used in high-speed papermaking machines, with better fine fiber retention and uniform papermaking effect.
2. Pressing felts
Pressing felts are used in the pressing section of the papermaking machine to help further dehydration of the paper sheets, while affecting the smoothness and density of the paper. Its main types include:
-
Single-layer felts: suitable for low-speed models, with good water permeability.
-
Multi-layer composite felt: more complex structure, high dehydration efficiency, suitable for high-speed papermaking machines.
-
Endless felt: reduce seam marks and improve paper quality.

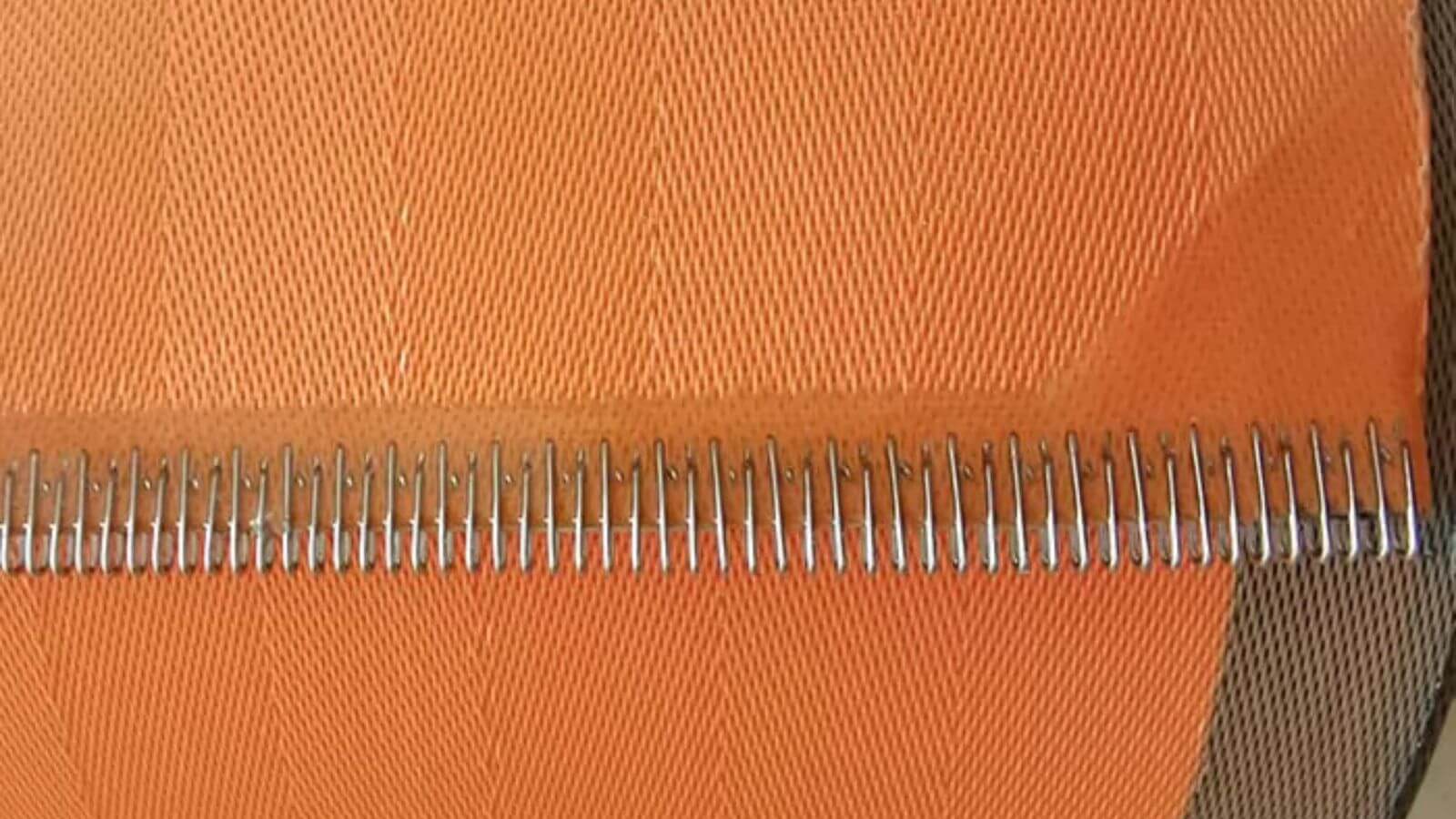

3. Dryer Fabrics
Dryer fabrics are located in the drying section of the papermaking machine, responsible for supporting the paper sheets and promoting hot air drying. Common types include:
-
Single-layer dryer fabric: suitable for low-speed papermaking machines, good stability.
-
Double-layer dryer fabric: improves air permeability and support capacity, suitable for high-speed production.
-
Spiral dryer fabric: strong durability, widely used in special paper production.
4. Other types of special fabrics
In addition to the above three main types, there are some fabrics used for specific papermaking processes, such as:
-
Headbox filter: used for pulp flow control and improve paper uniformity.
-
Conveyor belt fabric: used in the conveying link of special paper production.
-
Anti-sticking net: reduce paper sheet adhesion and improve production efficiency.
The choice of paper machine fabrics directly affects paper quality, production efficiency and energy consumption, so it is crucial to reasonably match different types of fabrics.
Major Paper Machine Clothing Manufacturers
1. Voith Group
-
Headquarters: Germany
-
Features: As a leader in the papermaking industry, Voith provides high-end papermaking fabrics, ranging from forming fabrics, press felts to drying fabrics, with advanced technology, excellent durability and high air permeability.
-
Advantages: Deeply integrated with the whole machine equipment, providing overall optimization solutions to improve paper machine efficiency and product quality.
2. ANDRITZ
-
Headquarters: Austria
-
Features: Focusing on papermaking and environmental protection technologies, its papermaking machine fabrics cover the production needs of various paper types and have excellent wear resistance and anti-pollution capabilities.
-
Advantages: Provide customized solutions suitable for high-speed paper machines, while committed to sustainable development and launching environmentally friendly fabric products.
3. AstenJohnson
-
Headquarters: United States
-
Features: With a century-old history in the papermaking fabric industry, its products cover forming fabrics, press felts and drying fabrics, which are widely used in various paper machines.
-
Advantages: Strong R&D capabilities, long product life, suitable for different process conditions, optimized moisture control, and improved papermaking efficiency.
Important suppliers in China and other regions
China:
-
Xuzhou Huadong Paper Fabric Co., Ltd.: Focuses on high-performance papermaking fabrics, and its products are widely used in domestic and foreign paper mills.
-
Hangzhou Yongchuang Mesh Co., Ltd.: Its products cover forming fabrics, press felts, drying fabrics, etc., with high cost performance, and occupy a certain share in the domestic market.
-
Guangzhou Keylife Textile Co., Ltd.: Its products perform well in air permeability, stability and durability, and are exported to many countries.
Other regions:
-
Heimbach Group (Germany): Focuses on high-end papermaking fabrics, especially high wear-resistant and high anti-pollution products.
-
TEXTECHNOLOGY (Italy): Provides high-performance drying fabrics suitable for special paper production.
Comparison of the characteristics and advantages of major manufacturers
Brand | Headquarters | Main Products | Features | Advantages |
---|---|---|---|---|
Voith | Germany | Forming fabrics, press felts, dryer fabrics | Advanced technology, integrated solutions | High durability, energy efficiency |
ANDRITZ | Austria | Forming fabrics, press felts | High wear resistance, eco-friendly fabrics | Suitable for high-speed paper machines |
AstenJohnson | USA | Forming fabrics, dryer fabrics | Strong R&D, adaptable for various paper types | Long lifespan, optimized moisture control |
Xuzhou Huadong | China | Forming fabrics, press felts | High cost-performance ratio | Leading domestic market, exports available |
Heimbach | Germany | High-end papermaking fabrics | Designed for special paper types | Anti-contamination, excellent permeability |

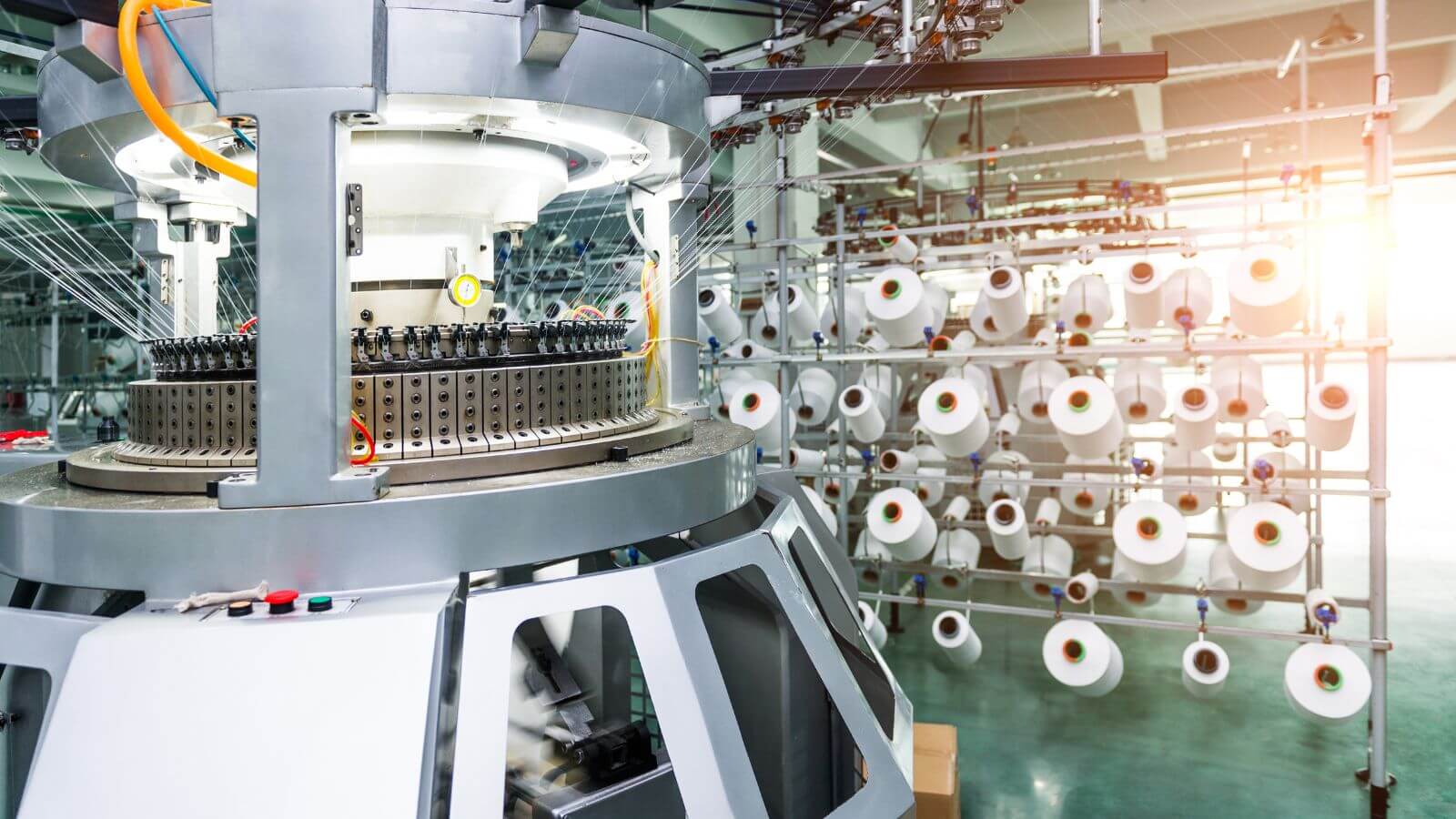

Manufacturing Process and Technology of Paper Machine Fabrics
Paper machine clothing (PMC) is a vital component of the papermaking process. Its manufacturing process and technology directly affect paper quality and production efficiency. The following is a detailed analysis from the aspects of raw material selection, weaving and coating process, and innovative technology.
1. Raw material selection
Paper machine clothing is mainly made of high-performance synthetic fibers. Common raw materials include:
-
Polyester (PET): It has good wear resistance, heat resistance and dimensional stability and is one of the most commonly used materials.
-
Nylon (PA): It has high elasticity and impact resistance and is suitable for parts with high tensile strength requirements.
-
Aramid: It is resistant to high temperature and chemical corrosion and is suitable for extreme working environments.
The reasonable combination of different fibers can optimize the performance of the fabric and improve its durability and adaptability.
2. Weaving and coating process
(1) Weaving process
Paper machine clothing is woven with single-layer, double-layer, multi-layer and spiral mesh structures. The weaving method determines its air permeability, pressure resistance and filtration performance. For example:
-
Single-layer fabric: simple structure, good air permeability, suitable for low-speed papermaking machines.
-
Double-layer fabric: The upper and lower layers use different fibers to improve strength and service life.
-
Multi-layer fabric: Enhanced durability and uniformity, suitable for high-speed papermaking machines.
-
Spiral mesh structure: Improved permeability and stability, suitable for high-demand paper grades.
(2) Coating process
In order to enhance the performance of the fabric, coating treatment is usually used. Common processes include:
-
Polyurethane coating: Enhance wear resistance and hydrolysis resistance, and increase fabric life.
-
PTFE (polytetrafluoroethylene) coating: Reduce friction, improve dehydration effect and anti-pollution ability.
-
Ceramic coating: Used to improve wear resistance and extend fabric life.
3. Innovative technology
With the development of the papermaking industry, manufacturers continue to introduce new technologies to improve fabric performance:
-
Nano coating: Through nano-level coating technology, it enhances water resistance and anti-pollution ability while reducing energy consumption.
-
Enhanced wear resistance materials: Add high-strength aramid or carbon fiber to the fabric fiber to improve wear resistance and tensile strength.
-
Intelligent monitoring technology: Some high-end paper machine fabrics are embedded with sensors to monitor the fabric operation status in real time and reduce downtime losses.
How to Choose the Right Paper Machine Fabric
Paper machine fabrics (such as forming fabrics, press felts and drying fabrics) play a vital role in the papermaking process. Choosing the right fabric can not only improve paper quality, but also increase production efficiency and reduce costs. The following key factors can help you make the best choice.
1. Key factors affecting the selection
(1) Papermaking type
Different types of paper have different performance requirements for fabrics. For example:
-
Cultural paper (such as writing paper, printing paper): requires fabrics with good uniformity and forming properties to improve paper quality.
-
Packaging paper (such as kraft paper, corrugated base paper): requires high-strength fabrics to withstand greater pressure and wear.
-
Specialty paper (such as filter paper, toilet paper): may require special coatings or structural designs to meet specific air permeability or water absorption requirements.
(2) Machine parameters
-
Speed: High-speed paper machines (>1000m/min) require more stable and wear-resistant fabrics to reduce paper breakage rates.
-
Wire width: The width of the fabric should match the machine size and ensure uniform installation tension.
-
Pressure and humidity: Fabrics in the press section and drying section need to be able to withstand high temperature and high humidity environments while maintaining good air permeability and durability.
2. Procurement advice and cost control
(1) Select high-quality suppliers
Choose reputable manufacturers to ensure stable fabric quality and provide good after-sales support. You can examine the supplier's production process, material selection and customer reviews.
(2) Balance cost and performance
-
Initial cost vs. service life: Although high-quality fabrics are more expensive, they have a longer service life, which can reduce the frequency of replacement and reduce long-term costs.
-
Energy consumption optimization: Fabrics with moderate air permeability can reduce energy consumption, improve drying efficiency and reduce operating costs.
(3) Regular maintenance and optimization
Proper cleaning and maintenance can significantly extend the service life of fabrics and reduce the frequency of replacement. For example, regularly check the wear of the fabric and adjust the tension in time to avoid abnormal wear.
Summary of Development Trends and Market Outlook for Paper Machine Fabrics Industry
From the perspective of market demand, as environmental protection policies become increasingly stringent, the demand for green and intelligent equipment will drive the industry to upgrade further. The introduction of digital technology also makes it possible to optimize and control the production process.
Looking ahead, with the recovery of the global paper industry and the improvement of environmental awareness, the paper machine fabric market will continue to grow and develop under the dual goals of improving technology content and reducing production costs.
