Description

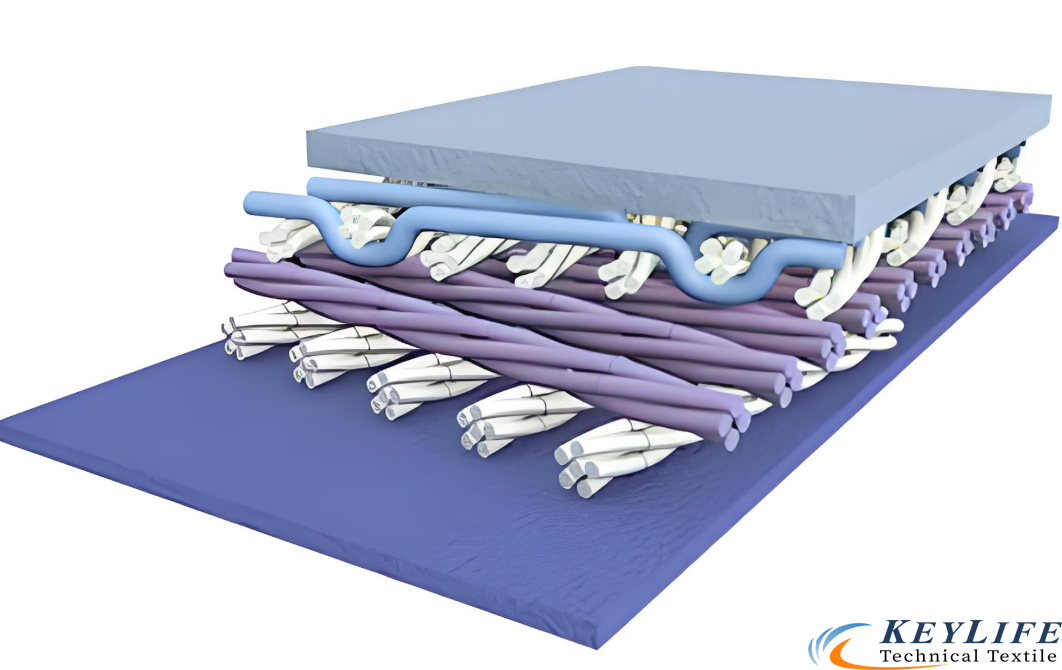

Three-layer BOM papermaking press felts include 1+2 composite, 2+1 composite and 1+1+1 composite three-layer BOM papermaking felts.

The press felt can be used to the linear pressure above 200kN/m, and has the characteristics of good elasticity, good water filtering performance. It can effectively eliminate all kinds of marks, and has a stable size, long service life and so on.

The triple layer felt is suitable for vacuum compound press of medium and high-speed paper machine, large wheel through blind hole press, shoe press and other types of press. It is used for making all kinds of high-grade newsprint and cultural paper, hanging panel paper, jammed paper and other paper types.

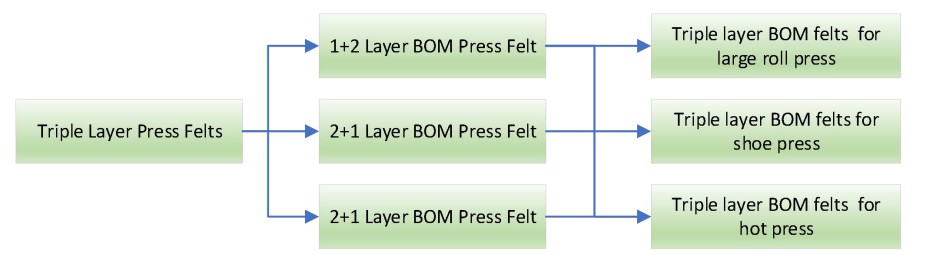

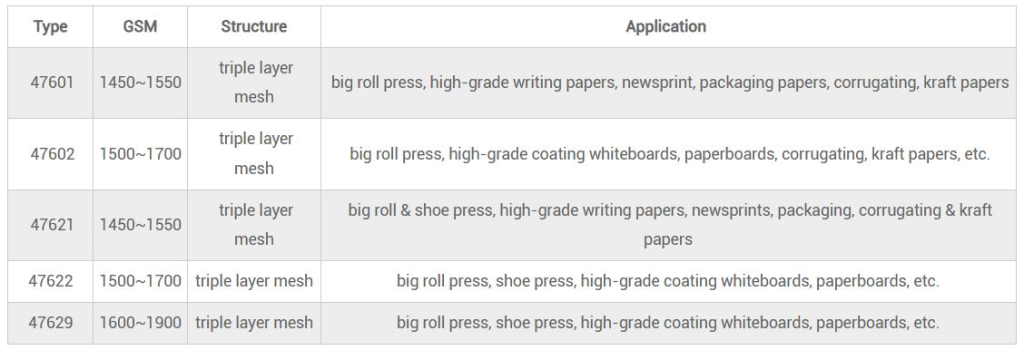

Types of Triple Layer BOM Felts

Feature

● Plentiful combinations of different base fabrics

● Large void volume

● High surface smoothness

● Resistance against high pressure loadings

● Good flexibility

● Excellent permeability

● Eliminate many kinds of marks

● Structural stability

● Long life performance

Application

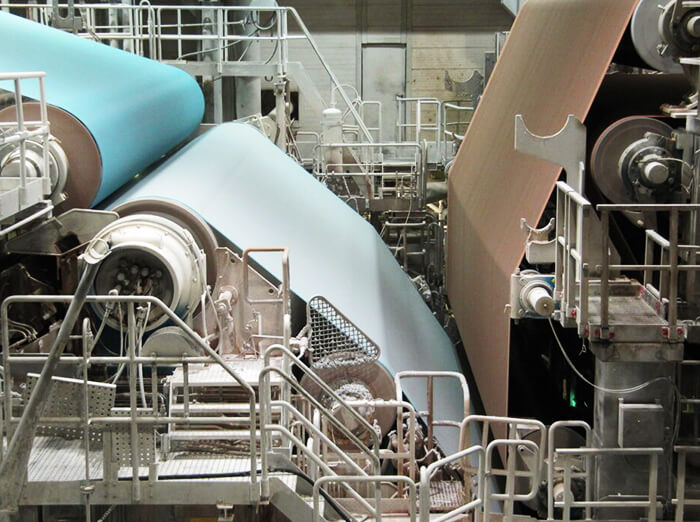

Paper machines: Medium/high-speed paper machine of multicylinder, fourdrinier, superposition wire, vacuum composite press, large-diameter roll press, shoe press, etc.

● Paper machine speed: ≤1000m/min

● Paper: ≥≥40g/m2 newsprint, write paper, high-grade board paper, etc.

● NIP: ≥200KN/m
